HackMyCart

The most hackable Web Shop!

How to use

Prepare development environment

1. Install node.js

sudo apt install npm

# If outdated version:
sudo npm install -g n
sudo n stable

2. Download + extract the project
3. Open the root folder with VS Code (recommended)
4. Open the bash inside VS Code and install all necessary packages:

npm i

Test/development

There are multiple commands to test parts or the whole project:

• npm run vite:dev: Start Vue frontend only
• npm run server:dev: Start ExpressJs backend only
• npm run fullstack:dev: Start front- and backend

The frontend runs on http://localhost:5173/ and the backend on http://localhost:3000/

Build

• npm run vite:build: Build Vue frontend only
• npm run server:build: Build ExpressJs backend only
• npm run fullstack:build: Build front- and backend
• npm run electron:build: Build front- and backend to an Electron desktop application
• npm run builder:build: Build an installer file of the Electron application for current operating system. Electron-build has to run first!
• npm run builder:win: Build an installer file of the Electron application for Windows operating systems. Electron-build has to run first!

Structure

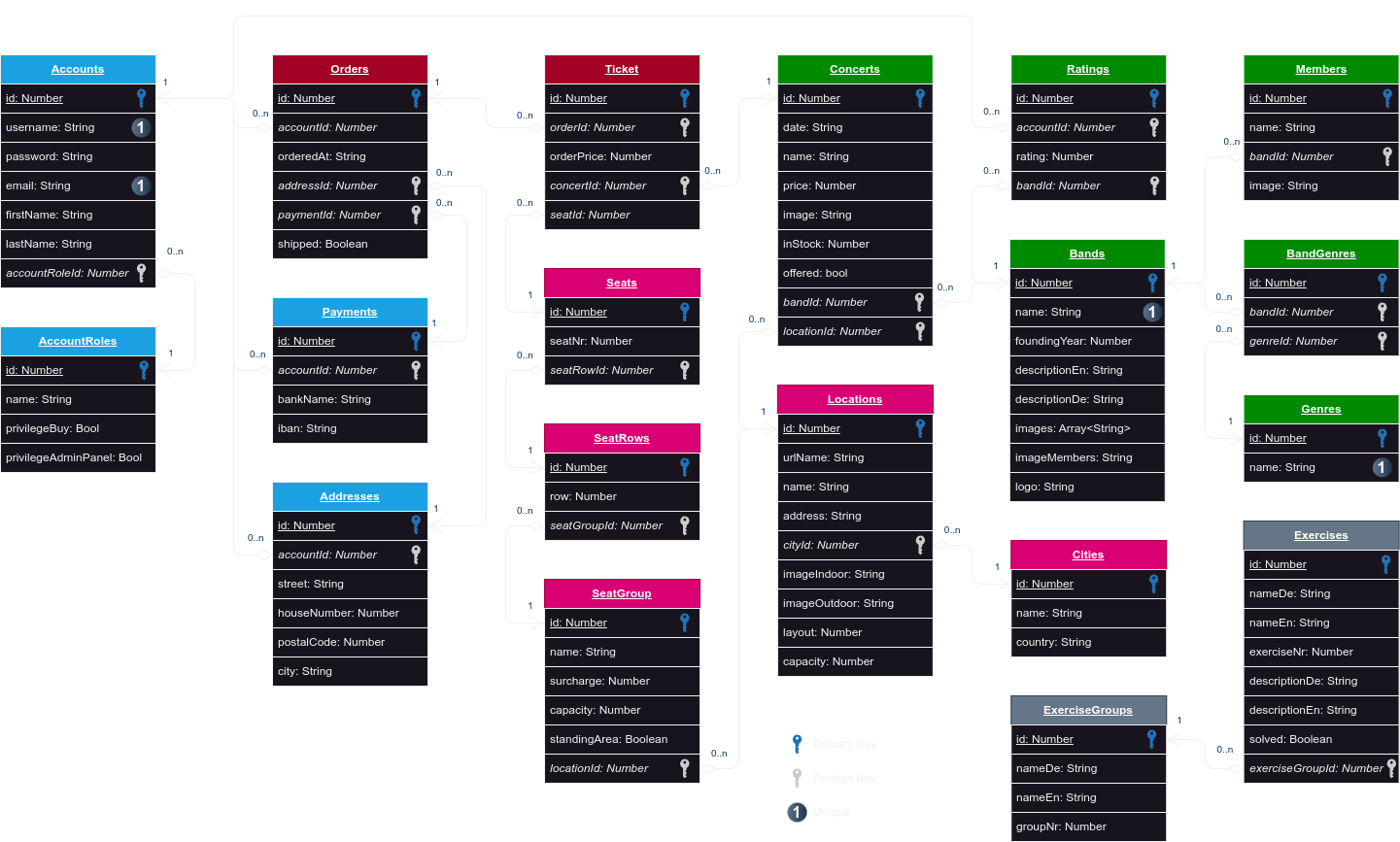

Database

Backend API endpoints

The application host it's data in a SQLite database. The access is managed by an ExpressJs server which offers many REST-API endpoints for the frontend. The REST-API server runs on port 3000.

---

Listing existing

GET /accounts/ (Get all Accounts)

Parameters

None

Responses

http code	content-type	response
200	application/json	Array<Account + AccountRole>

Example Response

[
  {
    "id": 421,
    "username": "hagemeister93",
    "password": "Xjt3qb5t",
    "email": "hagemeister93@gmail.com",
    "firstName": "Laurin",
    "lastName": "Hagemeister",
    "accountRoleId": 2,
    "accountRole": {
      "id": 2,
      "name": "Admin",
      "privilegeBuy": true,
      "privilegeAdminPanel": true
    }
  }
]

GET /api/files (Get all public files)

Parameters

None

Responses

http code	content-type	response
200	application/json	Array<{folder: String, files: Array<{name: String, size: Number, url: String}> }>

Example Response

[
  {
    "folder": "artists",
    "files": [
      {
        "name": "alex-turner.jpg",
        "size": 56473,
        "url": "http://localhost:3000/static/artists/alex-turner.jpg"
      },
      {
        "name": "andy-nicholson.jpg",
        "size": 68983,
        "url": "http://localhost:3000/static/artists/andy-nicholson.jpg"
      }
    ]
  }
]

GET /bands/ (Get all bands)

Parameters

name	type	data type	description
sort	optional	string	Sort by number of concerts ascending (asc) or descending (desc)
count	optional	number	Number of items to responde

Responses

http code	content-type	response
200	application/json	Array<>

Example Response

[
  {
    "folder": "artists",
    "files": [
      {
        "name": "alex-turner.jpg",
        "size": 56473,
        "url": "http://localhost:3000/static/artists/alex-turner.jpg"
      },
      {
        "name": "andy-nicholson.jpg",
        "size": 68983,
        "url": "http://localhost:3000/static/artists/andy-nicholson.jpg"
      }
    ]
  }
]

GET /events?city=cityName&genre=genreName&count=nrOfItems&sort=sortDirection (Get all events, filtered by city and genre)

Parameters

name	type	data type	description
cityName	optional	string	Name of the city to filter for
genreName	optional	string	Name of the genre to filter for
nrOfItems	optional	number	Limits number of results
sortDirection	optional	string	Sort by number of concerts, 'asc' or 'desc'

Responses

http code	content-type	response
200	application/json	Array<Event + Array<Concert + Location + City> + Band & Genre>

GET /locations?count=nrOfItems&sort=sortDirection (Get all locations)

Parameters

name	type	data type	description
nrOfItems	optional	number	Limits number of results
sortDirection	optional	string	Sort by number of concerts, 'asc' or 'desc'

Responses

http code	content-type	response
200	application/json	Array<Location + City + Array<Concert + Event>>

Down here: todo!

GET /bands (Get all bands)

Parameters

None

Responses

http code	content-type	response
200	application/json	Array<Band>

GET /bands/:id (Get all information about one band)

Parameters

name	type	data type	description
id	required	string	ID of product in the database

Responses

http code	content-type	response
200	application/json	Band + Array<Rating> + Array<Member>

GET /shows/:id (Get all information about one show)

Parameters

name	type	data type	description
id	required	string	ID of product in the database

Responses

http code	content-type	response
200	application/json	Show + Tour + Location + City

GET /tours (Get all tours)

Parameters

None

Responses

http code	content-type	response
200	application/json	Array<Tours> + Band + Show + Location + City

GET /genres (Get all genres)

Parameters

None

Responses

http code	content-type	response
200	application/json	Array<Genre>

GET /orders/:id (Get all orders of an user)

Parameters

name	type	data type	description
id	required	string	ID of userAccount in the database

Responses

http code	content-type	response
200	application/json	ProductModel + Order, OrderItem, Product

GET /categories/ (Get all Categories)

Parameters

None

Responses

http code	content-type	response
200	application/json	Array<Categories>

GET /brands (Get all Brands)

Parameters

None

Responses

http code	content-type	response
200	application/json	Array<Brand>

---

Creating new

POST /accounts/ (Create a new account)

Parameters

name	type	data type	description
None	required	object (JSON)	Model of an Account

Responses

http code	content-type	response
201	application/json	AccountModel
400	application/json	{code: 400, message: "Username too short!"}
400	application/json	{code: 400, message: "Password too short!"}
409	application/json	{code: 409, message: "Username already in use"}

POST /orders/ (Create a new order)

Parameters

name	type	data type	description
None	required	object (JSON)	Model of an Order

Responses

http code	content-type	response
201	application/json	OrderModel

---

Updating existing

PATCH /accounts/ (Update data of an existing account)

Parameters

name	type	data type	description
None	required	object (JSON)	Model of an Account

Responses

http code	content-type	response
200	application/json	AccountModel
400	application/json	{code: 400, message: "..."}

---

Delete existing

---

Miscs

GET /api/ (Check if server runs)

Parameters

None

Responses

http code	content-type	response
200	None	None

GET /resetDatabase/ (Reset the database to it's default values)

Parameters

None

Responses

http code	content-type	response
200	None	None

Validate

POST /accounts/login (Login for user)

Parameters

name	type	data type	description
username	required	string	Username of the account
password	required	string	Password of the account

Responses

http code	content-type	response
200	application/json	AccountObject + Addresses, Payments, AccountRole
400	application/json	{code: 400, message: "Bad Request"}
401	application/json	{code: 401, message: "Unauthorized"}

---
