HackMyCart

The most hackable Web Shop!

How to use

Prepare development environment

1. Install node.js

sudo apt install npm

# If outdated version:
sudo npm install -g n
sudo n stable

2. Download + extract the project
3. Open the root folder with VS Code (recommended)
4. Open the bash inside VS Code, navigate to the software/ folder and install all necessary packages:

npm i

Test/development

There are multiple commands to test parts or the whole project:

• npm run dev: Starts the Vue frontend only
• npm run server: Starts the ExpressJs backend only
• npm run serve: Starts front- and backend

The frontend runs on http://localhost:5173/ and the backend on http://localhost:3000/

Compile for production

TODO

Structure

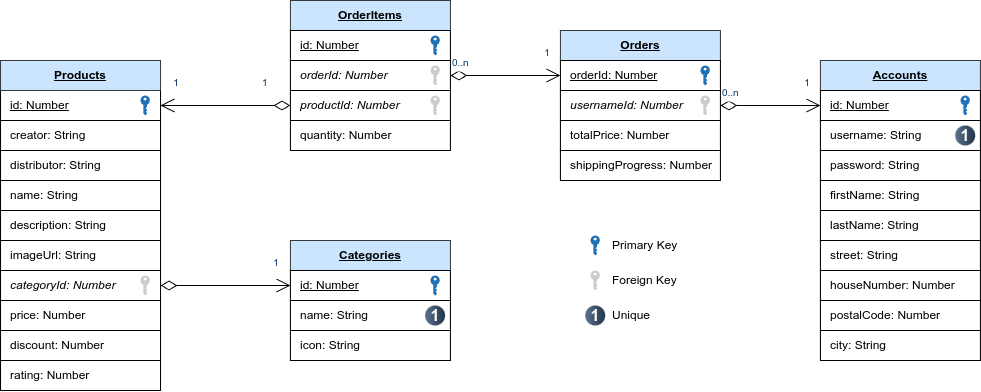

Database

Backend API endpoints

The application host it's data in a SQLite database. The access is managed by an ExpressJs server which offers many REST-API endpoints for the frontend. The REST-API server runs on port 3000.

---

Validate

POST /accounts/login (Login for user)

Parameters

name	type	data type	description
username	required	string	Username of the account
password	required	string	Password of the account

Responses

http code	content-type	response
200	application/json	AccountObject + Addresses, Payments, AccountRole
400	application/json	{code: 400, message: "Bad Request"}
401	application/json	{code: 401, message: "Unauthorized"}

---

Listing existing

GET /products/ (Get all products)

Parameters

None

Responses

http code	content-type	response
200	application/json	Array<ProductModel> + Category, Brand

GET /products/:id (Get a product by it's id)

Parameters

name	type	data type	description
id	required	string	ID of product in the database

Responses

http code	content-type	response
200	application/json	ProductModel + Category, Brand

GET /orders/:id (Get all orders of an user)

Parameters

name	type	data type	description
id	required	string	ID of userAccount in the database

Responses

http code	content-type	response
200	application/json	ProductModel + Order, OrderItem, Product

GET /categories/ (Get all Categories)

Parameters

None

Responses

http code	content-type	response
200	application/json	Array<Categories>

---

Creating new

POST /accounts/ (Create a new account)

Parameters

name	type	data type	description
None	required	object (JSON)	Model of an Account

Responses

http code	content-type	response
201	application/json	AccountModel
400	application/json	{code: 400, message: "Username too short!"}
400	application/json	{code: 400, message: "Password too short!"}
409	application/json	{code: 409, message: "Username already in use"}

POST /products/ (Create a new product)

Parameters

name	type	data type	description
None	required	object (JSON)	Model of a Product

Responses

http code	content-type	response
201	application/json	ProductModel
400	application/json	{code: 400, message: "..."}

POST /orders/ (Create a new order)

Parameters

name	type	data type	description
None	required	object (JSON)	Model of an Order

Responses

http code	content-type	response
201	application/json	OrderModel

POST /categories/ (Create a new category)

Parameters

name	type	data type	description
None	required	object (JSON)	Model of a Category

Responses

http code	content-type	response
201	application/json	OrderModel
400	application/json	{code: 400, message: "..."}

---

Updating existing

PATCH /accounts/ (Update data of an existing account)

Parameters

name	type	data type	description
None	required	object (JSON)	Model of an Account

Responses

http code	content-type	response
200	application/json	AccountModel
400	application/json	{code: 400, message: "..."}

---

Delete existing

DELETE /product/:id (Delete a product)

Parameters

name	type	data type	description
id	required	string	ID of product in the database

Responses

http code	content-type	response
200	application/json	ProductModel
400	application/json	{code: 400, message: "..."}

DELETE /categories/:id (Delete a category)

Parameters

name	type	data type	description
id	required	string	ID of category in the database

Responses

http code	content-type	response
200	application/json	CategoryModel
400	application/json	{code: 400, message: "..."}

---

Miscs

GET /api/ (Check if server runs)

Parameters

None

Responses

http code	content-type	response
200	None	None

GET /resetDatabase/ (Reset the database to it's default values)

Parameters

None

Responses

http code	content-type	response
200	None	None
